| Method | Direct Thermal Printing |
|---|---|
| Print Thickness | 72mm (Paper) |
| Dot Density | 576/512 per row |
| Printing Speed | 230mm per second |

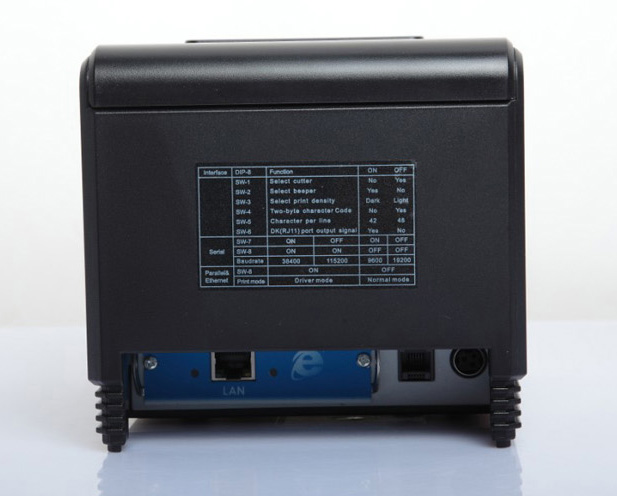

| Input | Parallel port/ Serial port/ Ethernet port/ USB/ Serial+USB |
| Paper Dimension | 79.5±0.5mm x 83mm |
| Row Spacing | 3.75mm (Adjustable) |
| Columns | 80mm: 80mm: Font A - 42 rows or 48 rows/ Font B - 56 rows or 64 rows/ Chinese characters (Simplified/traditional) rows or 24 rows |
| Font Size | ANK, Font A: 1.5x3.0mm (12x24 dots) Font B: 1.1x2.1mm (9x17 dots) Simplified/traditional: 3.0x3.0mm (24x24 dots) |
| Extended Characters | PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, LAtvian, Arabic, PT151 (1251) |
| Barcode Type | UPC-A/ UPC-E/ JAN13 (EAN13)/ JAN8 (EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 |
| Autocutter | Full/Half (Selectable) |
| Input Buffer | 64KB |
| NV Flash | 256KB |
| Power Adapter | AC 110V/220V, 50-60Hz |
| Power | DC 24V/2.5A |
| Power Output | DC 24V/1A |
| Weight | 1.56KG |
| Dimension | 200mm x 145mm x 137mm (L x W x H) |
| Working Environment | Temperature: 0-45°C, Humidity 10-80% |
| Operation | Temperature: 10-60°C, Humidity 10-90% |
| Cutter Life | 1,000,000 times |
| Print Head Life | 100KM |
