Turn your phone sideways to see the slides full size.
VYROXQuarry AI
Sense
Connect
Predict
Act
aikuari.com

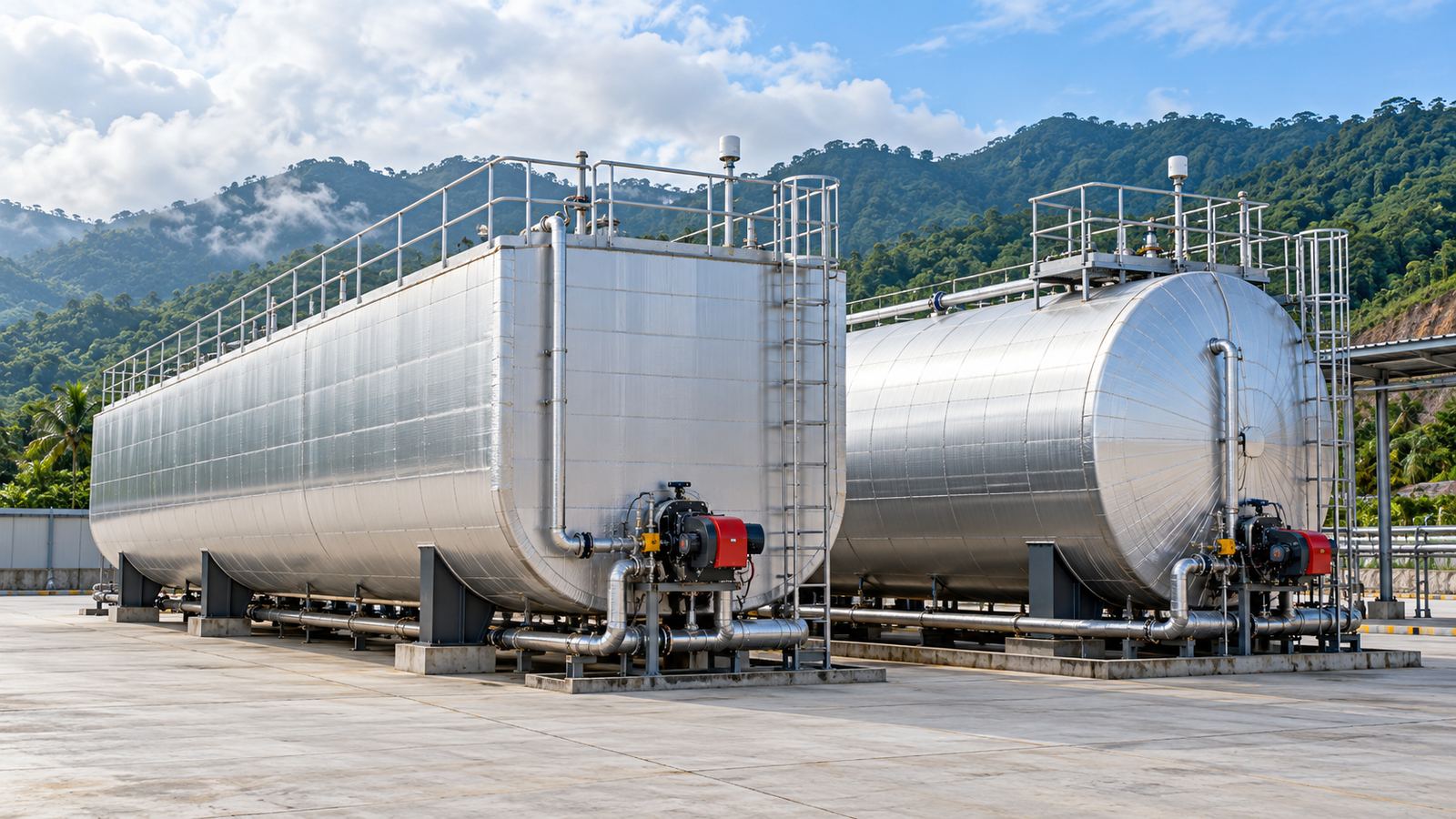

See Every Tank, Every Minute
VYROXQuarry AIDemo readings
Five Layers, One Platform
VYROXQuarry AI
01
Sense
30 DevicesModbus RTU and TCPScreen Scraper
02
Connect
Linux GatewayMQTTHTTPSOffline Buffer
03
Cloud Platform
Rules EngineDashboardsREST API
04
Intelligence
Health ScoreFailure ForecastAI Chat
05
Act
AlertsReportsSafe Control

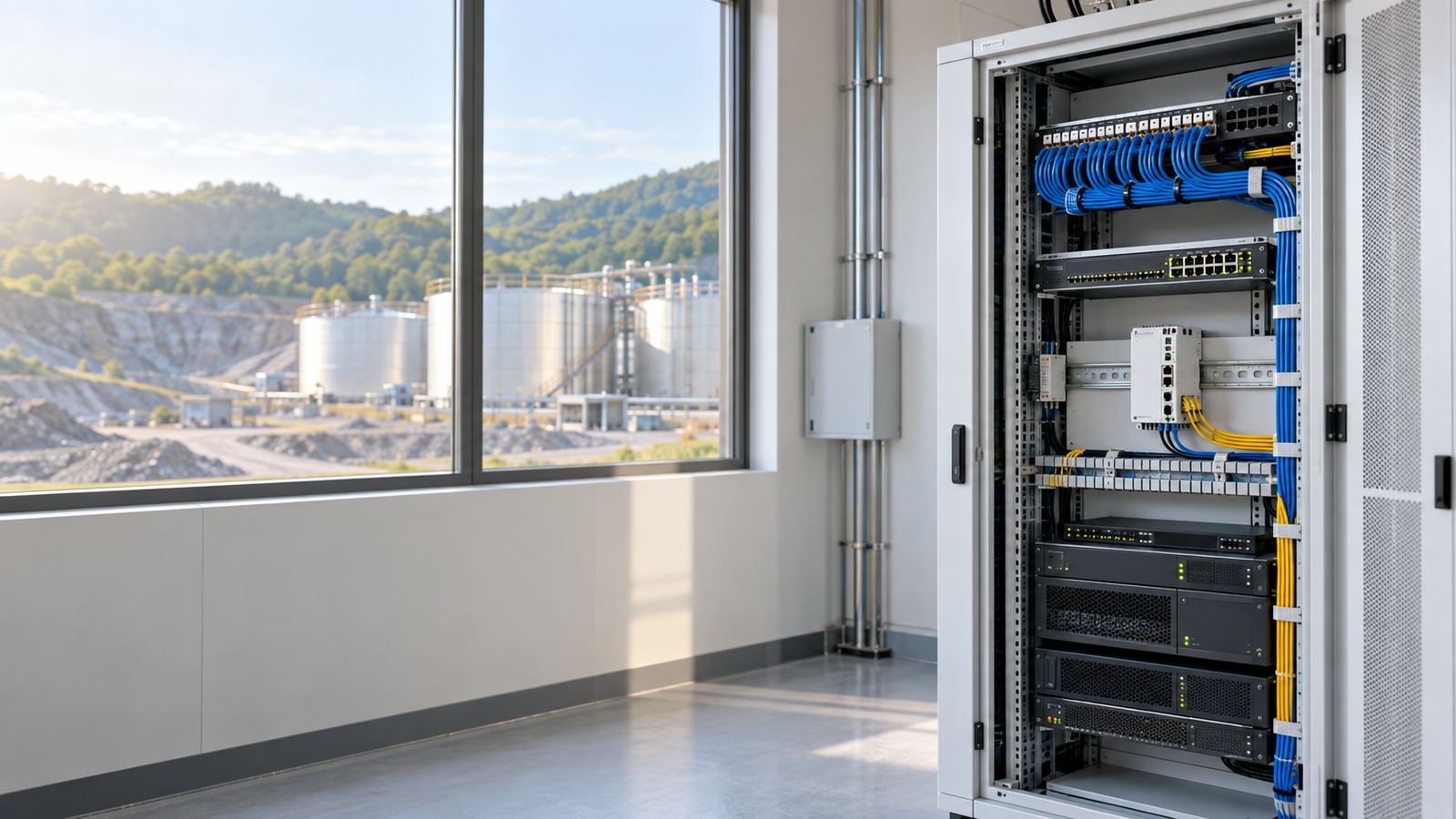

System Architecture, End to End
VYROXQuarry AI

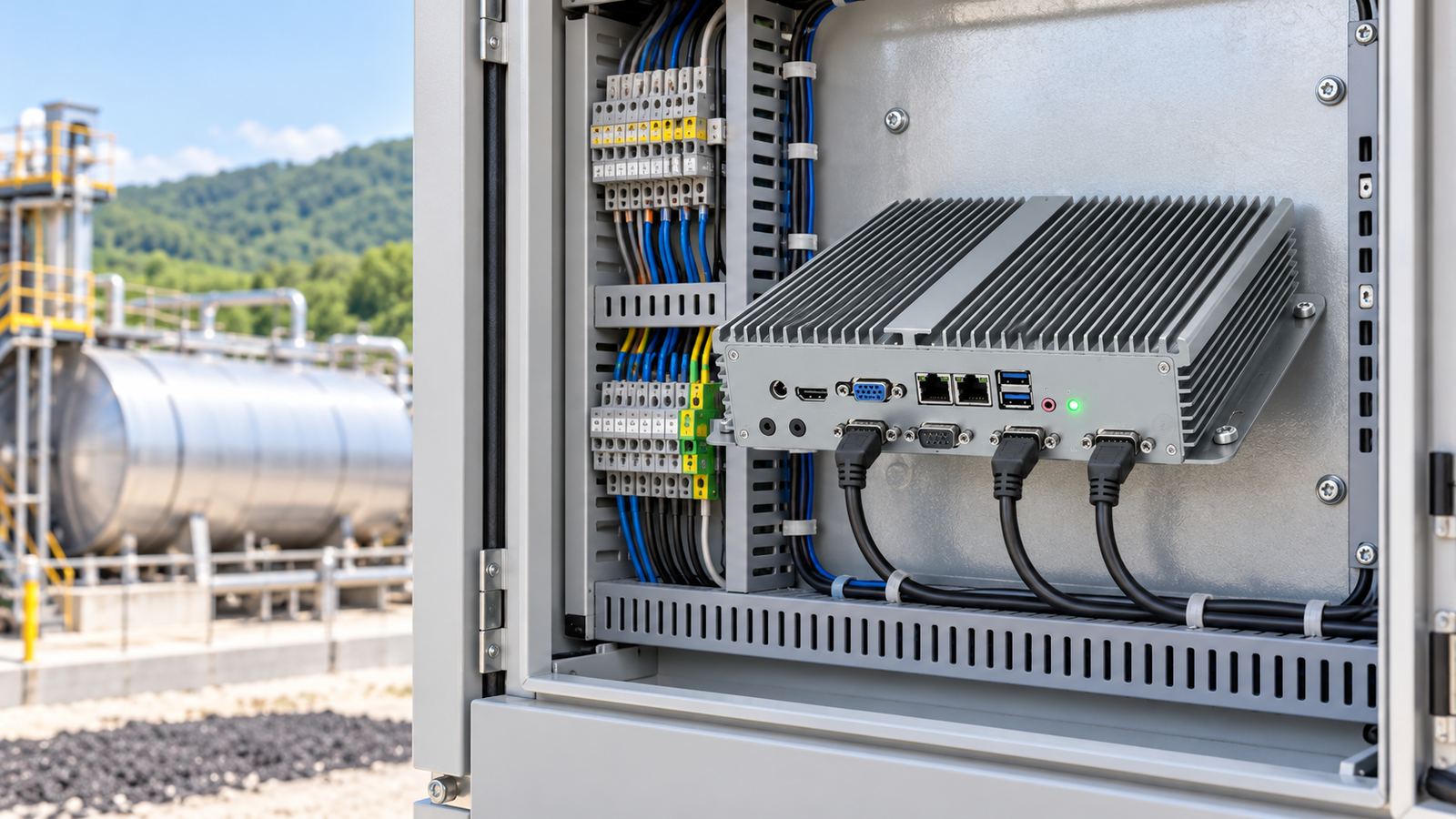

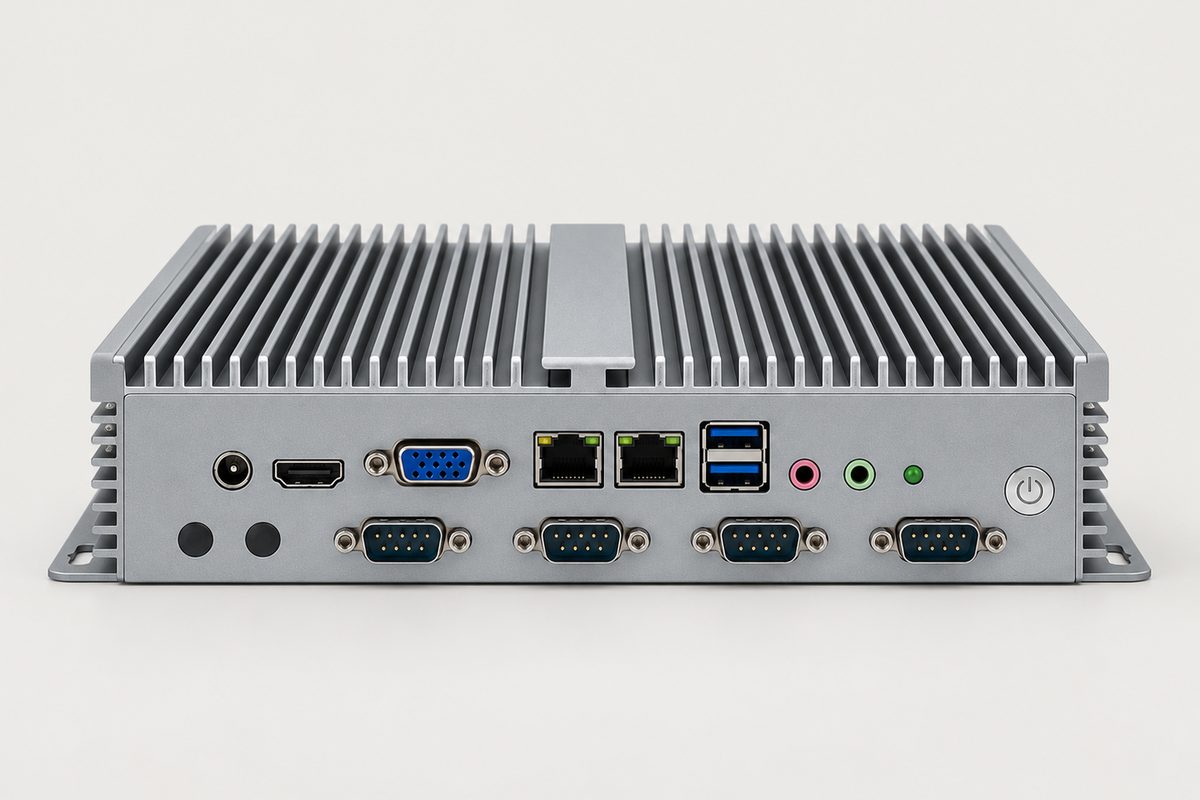

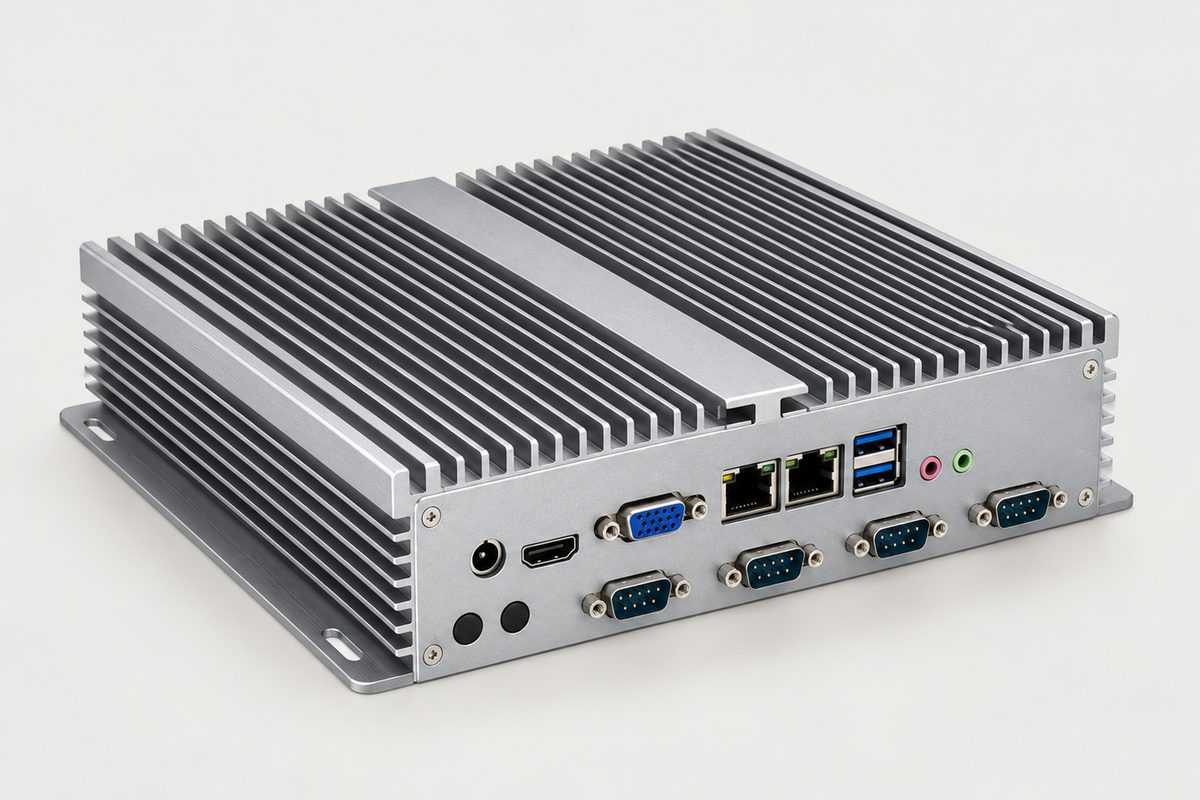

Embedded Industrial Computer

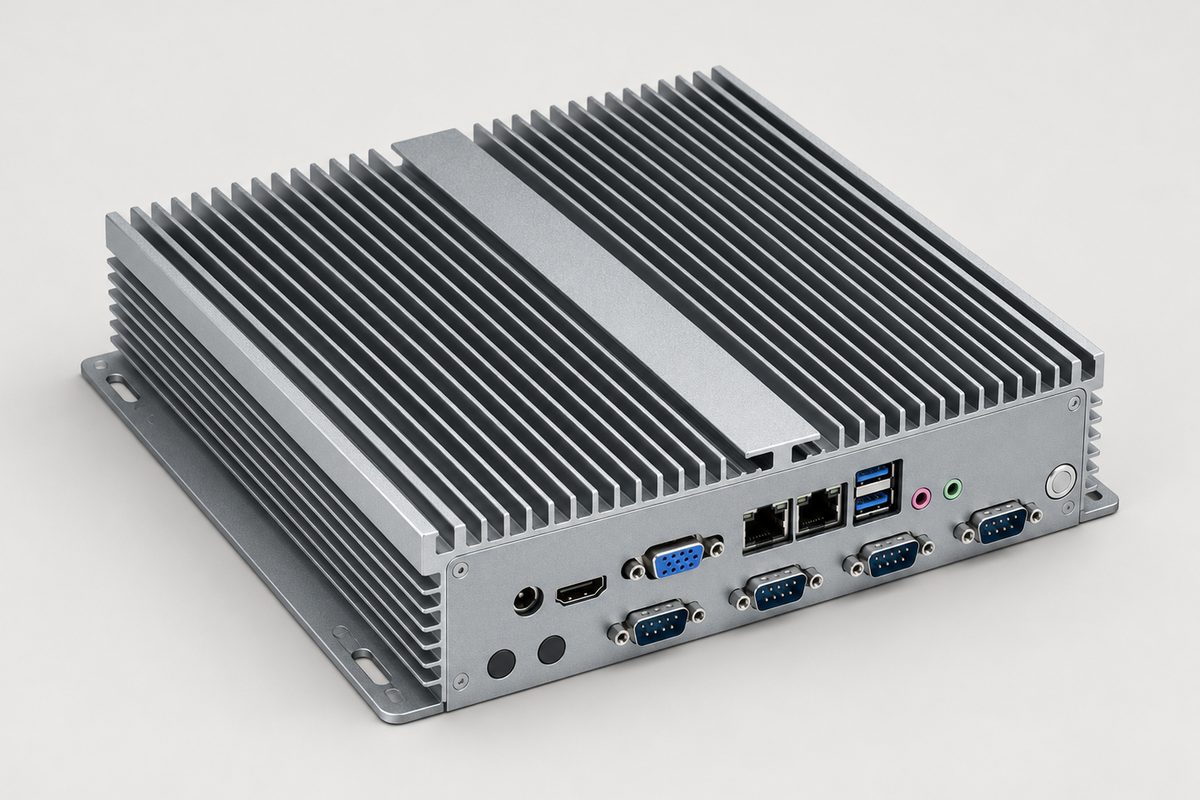

VYROXQuarry AIA fanless, rugged mini PC that runs the site gateway 24/7 inside a plant cabinet.

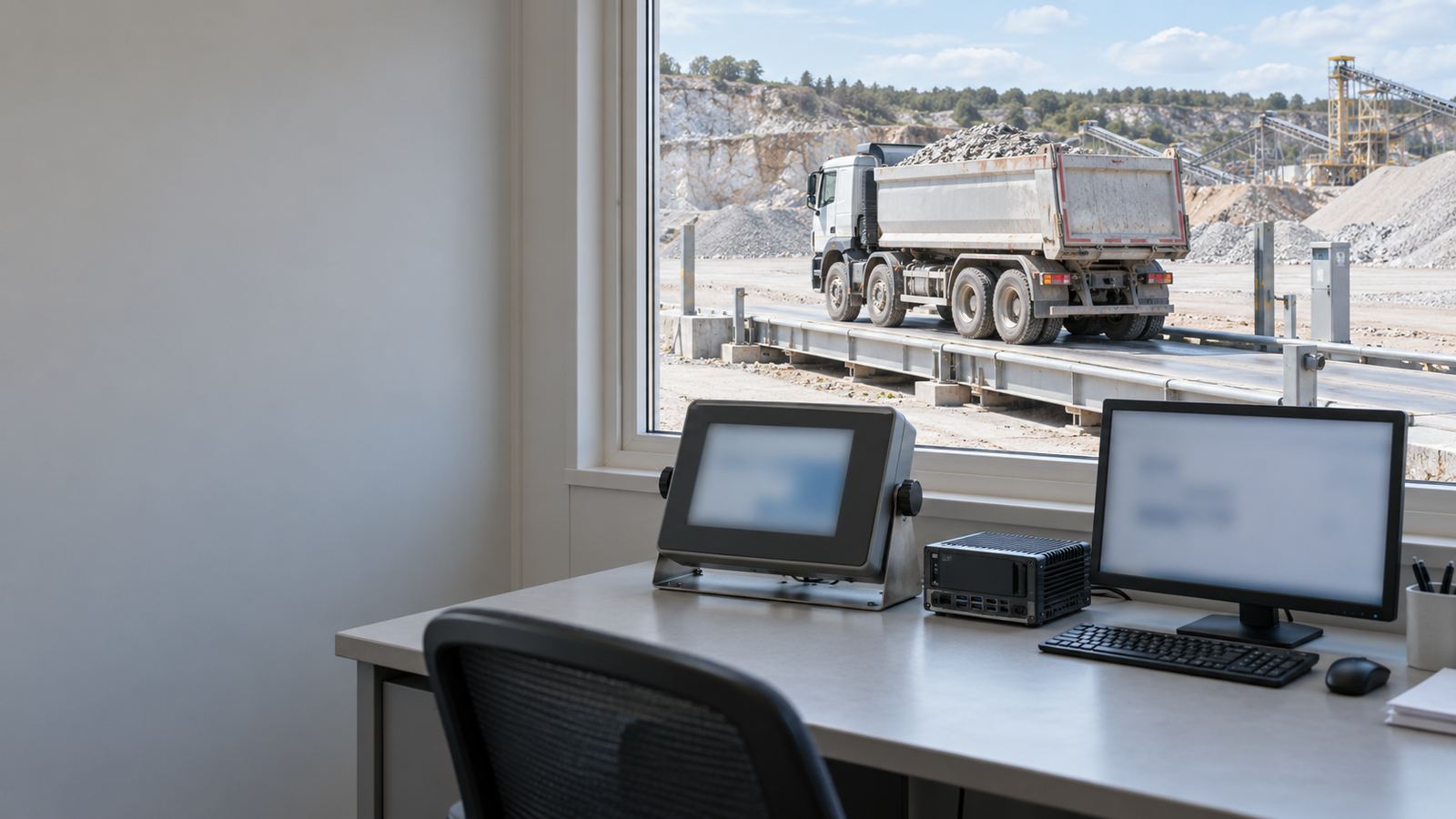

No Data Port? We Read the Screen
VYROXQuarry AIWeighbridge TerminalNo Data Port
GROSS42,180 kg
TARE13,760 kg
NET28,420 kg
PLATEBKT 4821
Readings, Charted Like Any Sensor
Gross Weight42,180 kg99% ✓
Tare Weight13,760 kg98% ✓
Net Weight28,420 kg99% ✓
Truck PlateBKT 4821Review
Read Only. Never Controls.
AI Warns Before It Runs Low
VYROXQuarry AI43U Shape Tank Level, %
Refill Order Created
U Shape tank, before it runs low
U Shape tank, before it runs low
Demo data · trend shown only when the fit is reliable
Ask Your Plant in Plain Words
VYROXQuarry AIWhich tank runs low first?
U Shape tank: 4 days to its 20 % low level. Now 43 % at 160 °C.
Radar Level7-Day TrendTank Temperature
Turn on O Shape tank heater
O Shape Tank Heater: OnRelay 3 · confirm within 10 min
Confirm
Done in 3 s · logged
Every Tonne, Measured and Reported
VYROXQuarry AI
61.4
Tonnes in Stock
3
Days of Cover
2.8
kWh per Tonne
42
PM10 µg/m³ vs MAAQS 100
3.1
kg CO₂e per Tonne, Estimated
1
Stops Today, by Reason
Daily OperationsEnvironmentalESG
Daily OperationsA4 · PDF
PDFExcelCSVScheduled Email
Demo data · estimates for management, not a certification
From First Glance to Report in Four Clicks
VYROXQuarry AIaikuari.com/app
VQVYROX Quarry AI
Home
Live Values
Alerts
Reports
Site Tree
Gateways
Home
Asphalt Plant
Open Alerts0
Gateways Online1 / 1
Nodes Reporting4 / 4
Last Reading4 s ago
Bitumen TanksAll Live
U Shape Tank Temperature160.2 °C
U Shape Tank Level43 %
O Shape Tank Temperature157.1 °C
O Shape Tank Level68 %
U Shape Tank · Temperature
LQT2485M · RS-485 slave 1 · every 5 s
160.2°CWithin 150 to 170 °C
Alerts
Overnight, handled
CriticalU Shape Tank Temperature Below 150 °C
Rule: below 150 °C for 10 minutes · Heater relay checked
02:14Raised · Operator notified, in-app and email
02:29Escalated to Supervisor
02:33Acknowledged · burner restarted
02:51Back in range · closed
AcknowledgeSnooze 1 hComment
Reports
Daily Tank Report · scheduled 07:00
Daily Tank Report
Download PDFPrintExcelEmail Daily

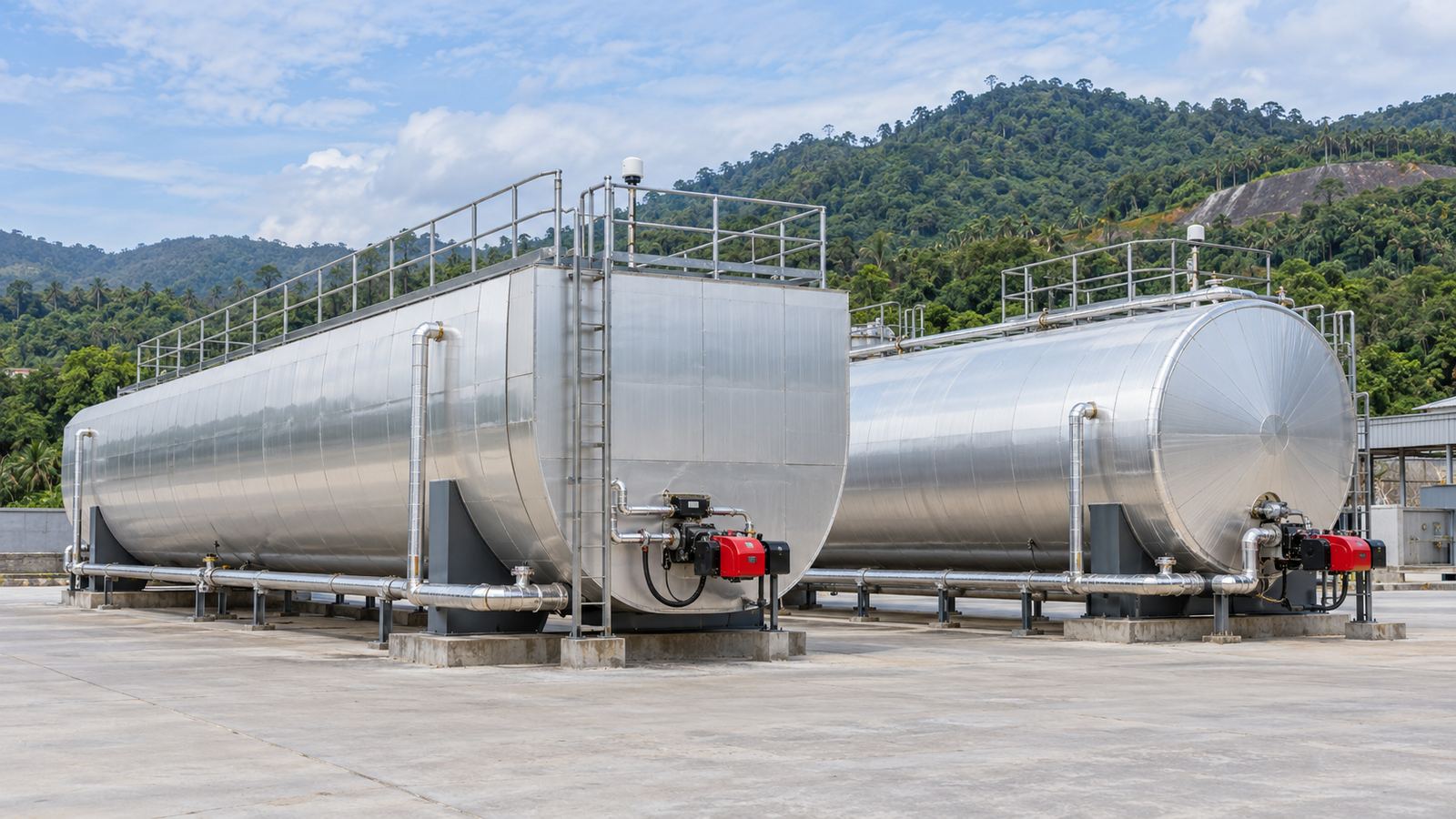

First Site: Bitumen Tanks
VYROXQuarry AI
LQT2485M TemperatureSlave 1PTB Radar LevelSlave 2
LQT2485M TemperatureSlave 3PTB Radar LevelSlave 4
Site GatewayLinux · polls every 5 s · buffers offline
CloudAlerts · forecasts · reports
Control RoomScreen scraper PC · relay board

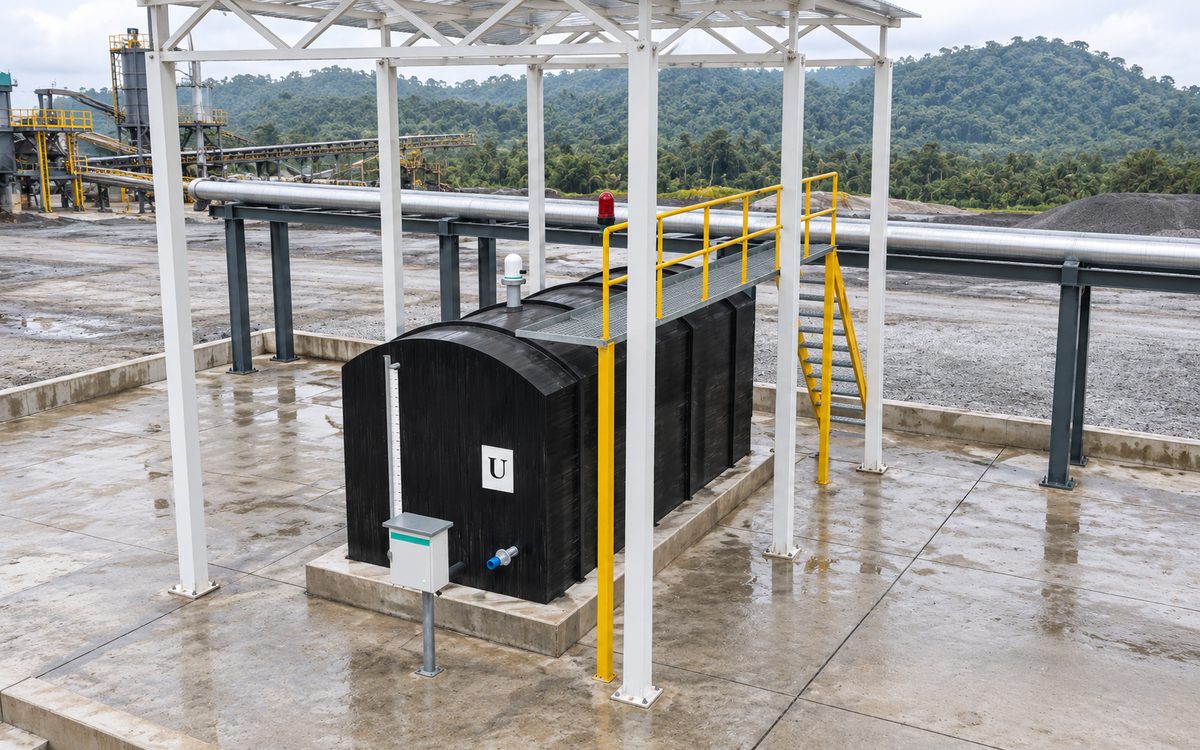

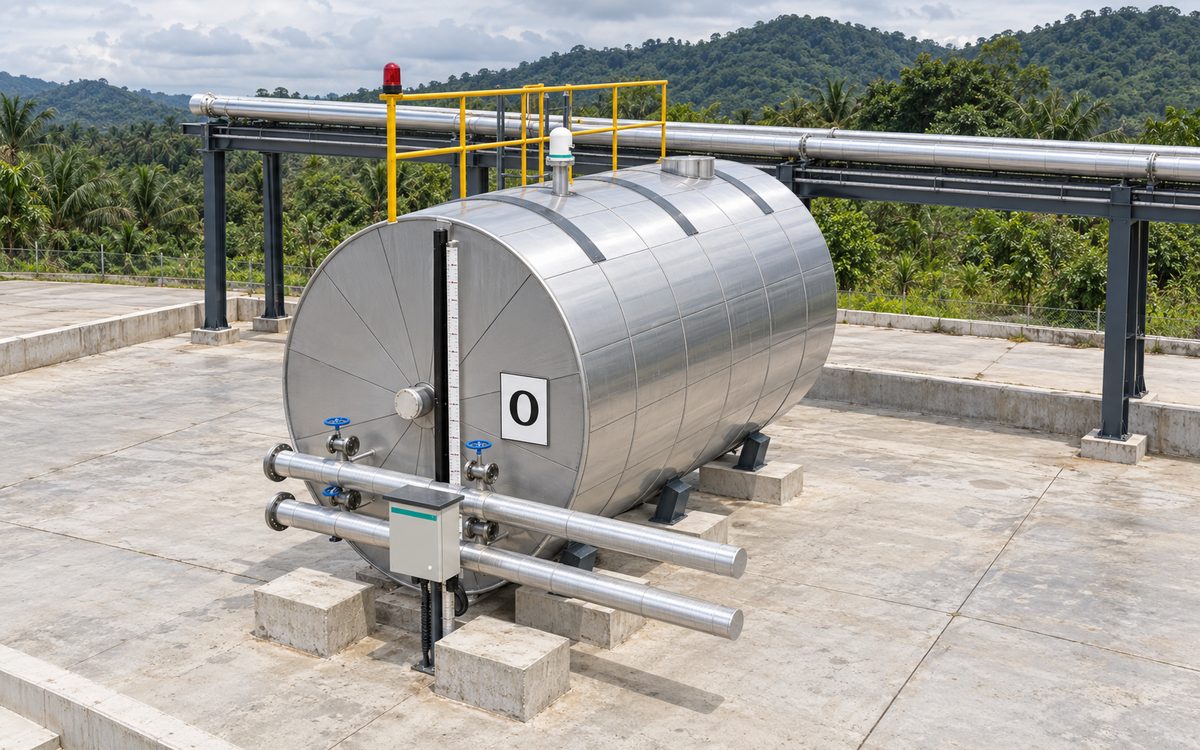

Tank images match the platform's 3D digital twin models · pilot demo readings
From One Site to Every Quarry
VYROXQuarry AI
1 / 13
